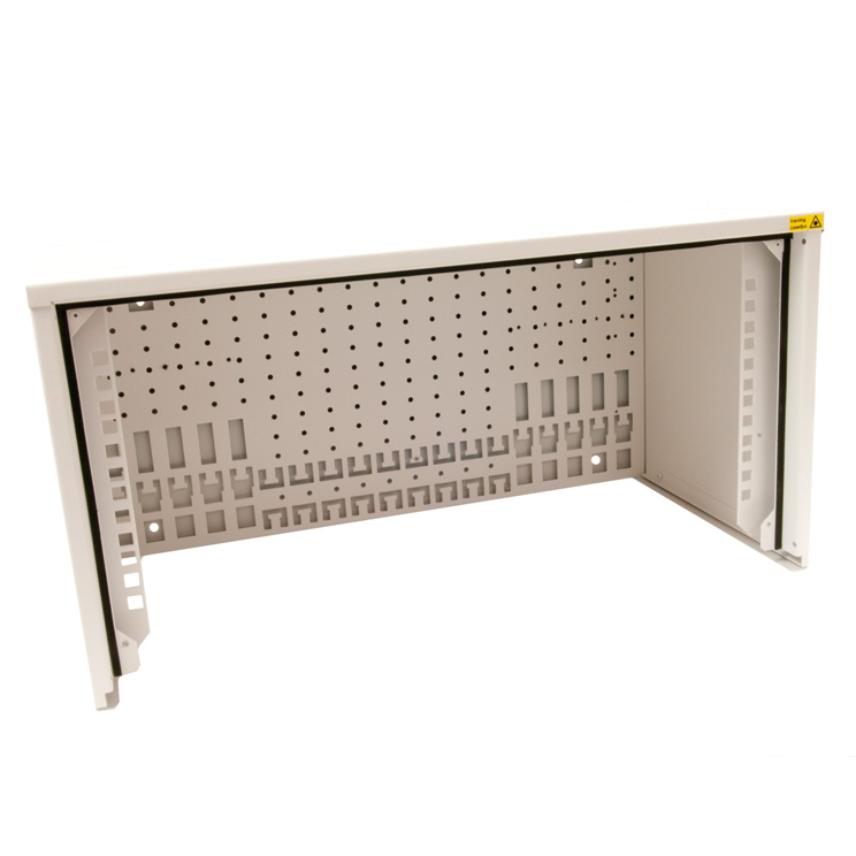

Splice cabinet NS8+ empty
Splice cabinet NS8+ empty
Splice cabinet NS8+ is used for splicing and/or branching up to 960 fibers in the ribbon fiber design (4-fiber ribbon).
Read more- Nexans ref. : 30781509
- Country ref. : 7212664
- EAN : 7330000107885
Description
Description
”Splice cabinet NS8+ empty” is made of powder coated galvanized steel and suitable for use in all types of splicing and / or branching. Suitable environments are indoors or outdoors in cable cabinet or similar.
NS8+ empty is an empty splice cabinet.
The cabinet is complemented with splice unit, splice cassettes, cable clamps and front cover + bottom/top, depending on the installation to be performed. If an empty splice cabinet is purchased it is full choice to select the cable direction.
For more information refer to installation instructions.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Colour
White
Material
Steel
Dimensional characteristics
Dimensional characteristics
Approximate weight per piece
5.5 kg
Depth
270 mm
Height
270 mm
Length
- mm
Width
535 mm
Usage characteristics
Usage characteristics
Field of application
Indoor
Packaging
Box
