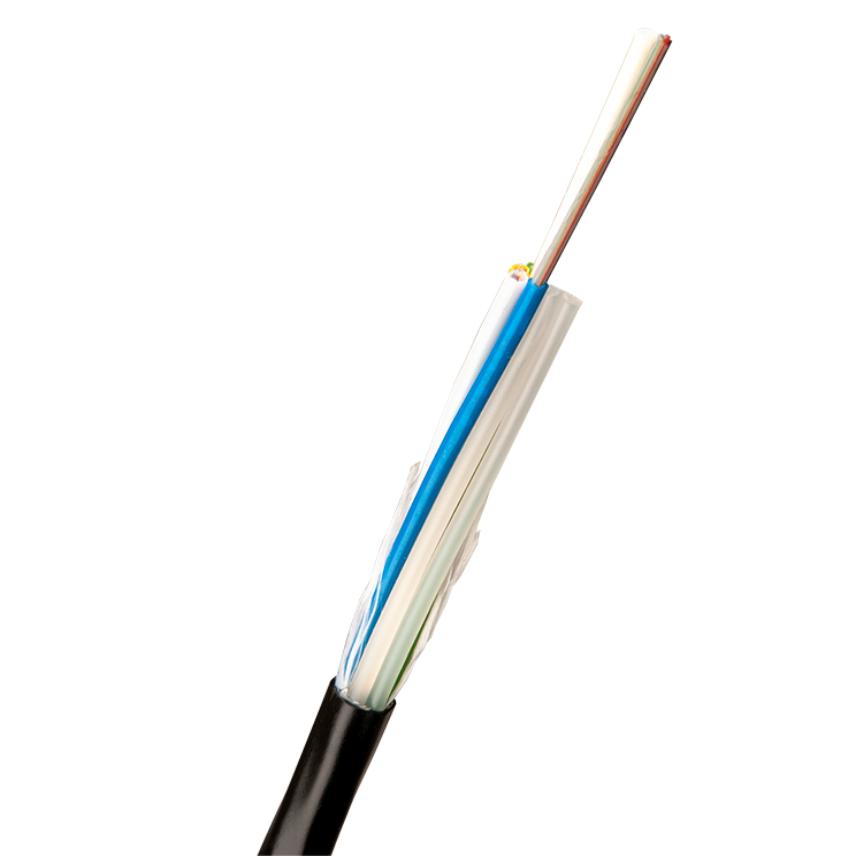

FZOMU-SD Ultimate™ 4x12xSML

FZOMU-SD is micro cable optimized for long installation lengths with blowing techniques in micro ducts. Besides the cable is designed for the Nordic climate has the cable different colored tubes, according to the color standard FIN2012, for a simplified and quick installation.

Nexans ref. : 29644398-201-00
Country ref. : 0233242

Description

Standards

Product

IEC 60794
Test

IEC 60793
International

ITU-T G. 657

Description

Fiber optic cable for outdoor use in ducts. The design can incorporate 6 to 288 primary coated fibres in loose tubes. The individually coloured fibres are placed in individually colored tubed, and stranded onto a central dielectric fibre reinforced strength member (FRP). FZOMU-SD is longitudinal water-blocked through the use of swellable yarn and sheathed with halogen-free black polyethylene. The cable is optimzed for long installation lengths with blowing techniques in micra ducts from 10 mm depending on the fiber count and cable outer diameter.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

Characteristics

Construction characteristics

Fiber optic type

SM (G657.A1)

Type of secondary protection

Loose tube

Construction type

Loose tube, SZ

Outer sheath

PE-HD

Sheath colour

Black

Material used for longitudinal water tightness

Swellable yarn

Halogen free

Yes

Metal free

Yes

Length water tightness Tube

Vaseline

Number of tube layer 1

Strength member

Central FRP

Dimensional characteristics

Nominal outer diameter

5.8 mm

Tube diameter

1.6 mm

Average sheath thickness

0.4 mm

Number of optical fibres, range

2 ... 288

Approximate weight

30 kg/km

Central strength member size

1.7 mm

Diameter over assembly

5.0 mm

Max. number of fibres per tube

Number of optical fibres

Mechanical characteristics

Maximum pulling force by laying

0.6 kN

Maximum permanent tensile load

0.25 kN

Crush resistance (EN 187 000)

0.5 kN

Impact resistance (EN 187 000)

5 J

Usage characteristics

Installation type

Outdoor - Duct

Operating temperature, range

-45 ... 60 °C

Ambient installation temperature, range

-15 ... 40 °C

Storage temperature, range

-45 ... 70 °C

Bending factor when installed

10 (xD)

Colour code

FIN2012

Dynamic bending factor

15 (xD)

Resources

Selling & delivery Information

The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
