FLQQBR 2x1,5+2x2x0,5
Nexans ref. 17030698 - Country ref. 0235745
- Packaging: Drum (500m)
- Nominal outer diameter: 9.2 mm
- Approximate weight: 10.1 kg/100m
- Length: 500 m
FLQQBR 2x1+1x2x0,22
Nexans ref. 17030141 - Country ref. 0235746
- Packaging: Reel (100m)
- Nominal outer diameter: 6.4 mm
- Approximate weight: 5.4 kg/100m
- Length: 100 m
FLQQBR 2x1+1x2x0,22
Nexans ref. 17030171 - Country ref. 0235749
- Packaging: Reel (500m)
- Nominal outer diameter: 6.4 mm
- Approximate weight: 5.4 kg/100m
- Length: 500 m
FLQQBR 2x1+2x2x0,22
Nexans ref. 17030271 - Country ref. 0235752
- Packaging: Reel (500m)
- Nominal outer diameter: 7.0 mm
- Approximate weight: 6.4 kg/100m
- Length: 500 m
Description
Description
DESCRIPTION
Design

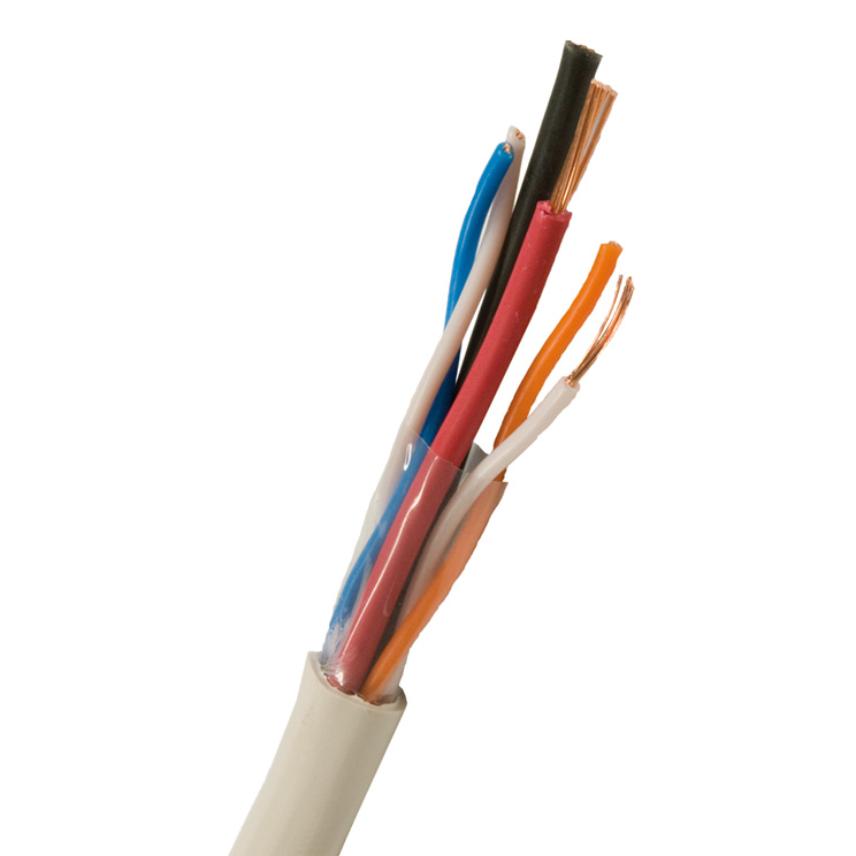

Combined power supply and signalling cable. The power supply conductors have a copper wire strand, 1,0 mm2 or 1,5 mm2 and insulation of halogen free, flame retardant plastic compound. The signalling conductors have a copper wire strand, 0,5 mm2 or 0,22 mm2, insulation of solid polyethylene and are twisted to pairs. The cable has a sheath of halogen free, flame retardant plastic compound and is intended for fixed installation indoors. Fire perfomance according to CPR class Dcas2d2a2.The cable emits no corrosive gases and has low smoke production during fire.The cable is intended for use in passage control systems.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
