AXQJ TT 24 kV 3-core
AXQJ TT 24 kV 3-core
The cable may be used for fixed installation indoors and outdoors in air, ground and water.
Read moreAXQJ TT 24 kV 3x95/25
Nexans ref. 21237698-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 60.0 mm
- Approximate weight: 310.0 kg/100m
AXQJ TT 24 kV 3x150/25
Nexans ref. 21237798-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 66.0 mm
- Approximate weight: 380.0 kg/100m
AXQJ TT 24 kV 3x240/35
Nexans ref. 21237898-201-05
- Packaging: Drum (500m)
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 76.0 mm
- Approximate weight: 515.0 kg/100m
Description
Description
Standards
-
ProductHD 620 S2 2010 10M
-
TestIEC 60754-1; IEC 60754-2; IEC 61034-1/2
-
NationalSS 424 14 16
Description

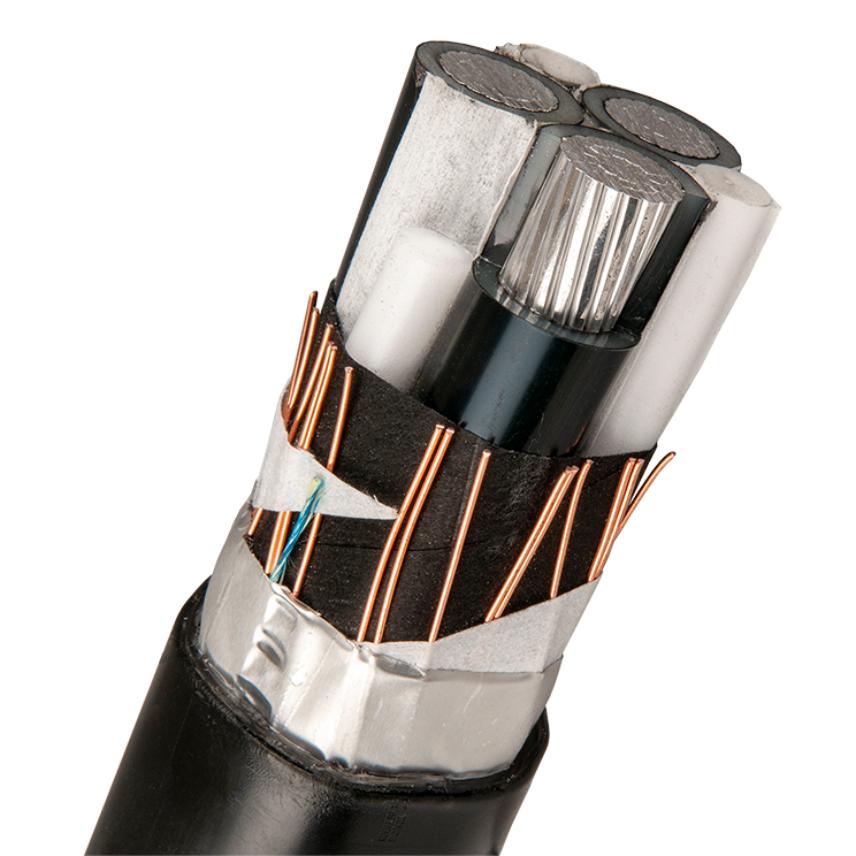

AXQJ TT is a longitudinally and radially waterblocked, XLPE-insulated, Cu screened and HFFR sheated 3-core cable with circular aluminium conductors.. The concentric screen and the aluminium foil has longitudinal contact. The cable is designed in applicable parts according to HD 620 S2 10M. The conductors are longitudinally water blocked have resistance and number of wires according to IEC 60228 class 2. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ TT meets the requirements for fire class Dcas2d2a2 according to CPR.
Standards
The cable can be loaded according to SS 424 14 16.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
