Axclight-H LT 24 kV

Description

Standards

Product

HD 620

Description

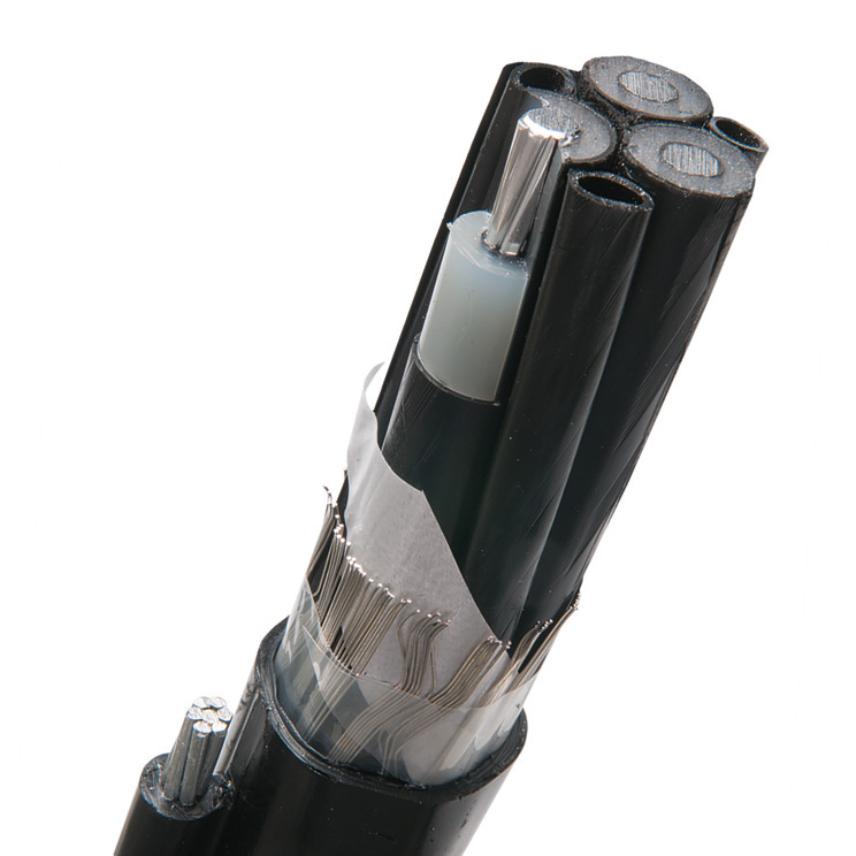

Axclight-H LT is a halogen free, XLPE-insulted, copper wire screened and PE-sheathed three core medium voltage cable with a supporting strand and circular aluminium conductors. The cable is designed according to HD 620. The conductors are longitudinally water blocked and meets the requirements for SS-EN 60228 class 2. The sheath is marked type/manufacturer/year+month/metre marking. Axclight-H LT is not flame retardant. Joints and cable terminations are standard materials from accessory manufacturers.

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Standards

Axclight-H is manufactured and tested according to SS 424 14 16. The cable can be loaded according to SS 424 14 16.

Quality and environmental management system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

Characteristics

Construction characteristics

Conductor material

Aluminum

Conductor shape

Round, stranded

Insulation

XLPE (chemical)

Outer sheath

PE LLD

Colour

Black

Halogen free

Yes

Conductor flexibility

Class 2

Suspension wire

Stranded steel wire, FE140

Dimensional characteristics

Number of cores

3

Minimum insulation thickness

4.85 mm

Section over suspension strand

25.0 mm²

Electrical characteristics

Operating voltage

24 kV

Rated Voltage Uo/U (Um)

12 / 24 kV

Usage characteristics

Minimum installation temperature

-20 °C

Maximum operating temperature

90 °C

Short-circuit max. conductor temperature

250 °C

Rip cord

Yes

Resources

Selling & delivery Information

Axclight-H is delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
