XCMK-HF 1kV

Products

XCMK-HF 1KV 2X10/ 2,5

Nexans ref. 35071498

  • Packaging: Drum (500m)
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 16.8 mm



XCMK-HF 1KV 2X16/ 2,5

Nexans ref. 35071598

  • Packaging: Drum (500m)
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 19.3 mm



XCMK-HF 1KV 2X25/ 2,5

Nexans ref. 35071698

  • Packaging: Drum (500m)
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 22.6 mm



Description

Description

Standards

  • Product
    HD 603 S1/3L

Description

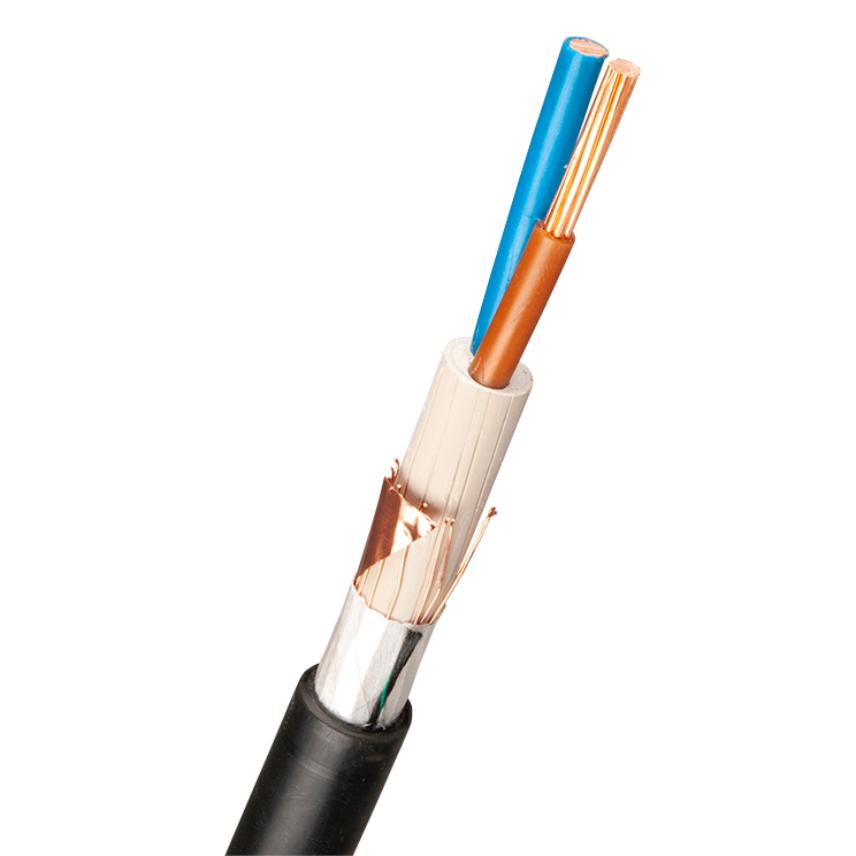

XCMK-HF is a halogen free, XLPE-insulated, HFFR-sheathed cable with circular, stranded copper conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. XCMK-HF is designed in applicable parts according to HD 603. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The cable has an extruded filler. The sheath is marked type/manufacturer/year+month/metre marking. XCMK-HF meets the requirements for fire classification Dcas2d2a2 according to CPR.

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.

Standards

XCMK-HF is manufactured and tested according to HD 603.S1-3L in applicable parts. The cable can be loaded according to SS 424 14 24.

Certification

Approved by Intertek.

Quality system

Designed, manufactured and tested in accordance with ISO 9001.

Environmental management system

The activities at our plant in Grimsås are certified to ISO 14001.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Halogen free
Yes

Dimensional characteristics

Dimensional characteristics

Number of cores
2
Screen section
2.5 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Bending factor when installed
8 (xD)
U.V resistance
Yes

Resources

Resources

Selling & delivery Information

XCMK-HF will be delivered in lengths of 500 m .The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
