FXQJ EMC 1kV CPR
FXQJ EMC 1kV CPR
The cable may be used for fixed installation indoors and outdoors in air, ground and water and it is suitable for use in industrial facilities and other establishments there EMI may cause problems.
Read moreFXQJ EMC 1 kV 3X2,5/2,5
Nexans ref. 15141698-201-05 - Country ref. 0622820
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 13.0 mm
- Approximate weight: 28.0 kg/100m
- Conductor cross-section: 2.5 mm²
FXQJ EMC 1 kV 3X6/6
Nexans ref. 15141898-201-05 - Country ref. 0622821
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 16.0 mm
- Approximate weight: 46.0 kg/100m
- Conductor cross-section: 6 mm²
FXQJ EMC 1 kV 3X10/10
Nexans ref. 15141998-201-05 - Country ref. 0622822
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 19.0 mm
- Approximate weight: 68.0 kg/100m
- Conductor cross-section: 10 mm²
FXQJ EMC 1 kV 3X16/16
Nexans ref. 15142098-201-05 - Country ref. 0622823
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 21.0 mm
- Approximate weight: 93.0 kg/100m
- Conductor cross-section: 16 mm²
FXQJ EMC 1 kV 3X25/16
Nexans ref. 15142198-201-05 - Country ref. 0622824
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 25.0 mm
- Approximate weight: 133.0 kg/100m
- Conductor cross-section: 25 mm²
FXQJ EMC 1 kV 3X35/16
Nexans ref. 15142298-201-05 - Country ref. 0622825
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 27.0 mm
- Approximate weight: 168.0 kg/100m
- Conductor cross-section: 35 mm²
FXQJ EMC 1 kV 3X50/25
Nexans ref. 15142398-201-05 - Country ref. 0622826
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 27.0 mm
- Approximate weight: 192.0 kg/100m
- Conductor cross-section: 50 mm²
FXQJ EMC 1 kV 3X70/35
Nexans ref. 15142498-201-05 - Country ref. 0622827
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 31.0 mm
- Approximate weight: 269.0 kg/100m
- Conductor cross-section: 70 mm²
FXQJ EMC 1 kV 3X95/50
Nexans ref. 15142598-201-05 - Country ref. 0622828
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 35.0 mm
- Approximate weight: 356.0 kg/100m
- Conductor cross-section: 95 mm²
FXQJ EMC 1 kV 3X120/70
Nexans ref. 15142698-201-05 - Country ref. 0622829
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 38.0 mm
- Approximate weight: 448.0 kg/100m
- Conductor cross-section: 120 mm²
FXQJ EMC 1 kV 3X150/70
Nexans ref. 15142798-201-05 - Country ref. 0622830
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 41.0 mm
- Approximate weight: 532.0 kg/100m
- Conductor cross-section: 150 mm²
FXQJ EMC 1 kV 3X185/95
Nexans ref. 15142898-201-05 - Country ref. 0622831
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 45.0 mm
- Approximate weight: 655.0 kg/100m
- Conductor cross-section: 185 mm²
FXQJ EMC 1 kV 3x240/120
Nexans ref. 15142998-201-05 - Country ref. 0622832
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 52.0 mm
- Approximate weight: 860.0 kg/100m
- Conductor cross-section: 240 mm²
FXQJ EMC 1 kV 3x300/150
Nexans ref. 15143098-201-05 - Country ref. xxxx
- Packaging: Drum (500m)
- Number of cores: 3
- Nominal outer diameter: 58.0 mm
- Approximate weight: 1050.0 kg/100m
- Conductor cross-section: 300 mm²
FXQJ EMC 1 kV 4X2,5/2,5
Nexans ref. 15143198-201-05 - Country ref. 0622834
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 14.5 mm
- Approximate weight: 30.0 kg/100m
- Conductor cross-section: 2.5 mm²
FXQJ EMC 1 kV 4X6/6
Nexans ref. 15143398-201-05 - Country ref. 0622835
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 17.5 mm
- Approximate weight: 52.0 kg/100m
- Conductor cross-section: 6 mm²
FXQJ EMC 1 kV 4X10/10
Nexans ref. 15143498-201-05 - Country ref. 0622836
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 20.5 mm
- Approximate weight: 78.0 kg/100m
- Conductor cross-section: 10 mm²
FXQJ EMC 1 kV 4X16/16
Nexans ref. 15143598-201-05 - Country ref. 0622837
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 22.5 mm
- Approximate weight: 110.0 kg/100m
- Conductor cross-section: 16 mm²
FXQJ EMC 1 kV 4X25/16
Nexans ref. 15143698-201-05 - Country ref. 0622838
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 26.5 mm
- Approximate weight: 160.0 kg/100m
- Conductor cross-section: 25 mm²
FXQJ EMC 1 kV 4X35/16
Nexans ref. 15143798-201-05 - Country ref. 0622839
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 29.0 mm
- Approximate weight: 199.0 kg/100m
- Conductor cross-section: 35 mm²
FXQJ EMC1 kV 4X50/25
Nexans ref. 15143898-201-05 - Country ref. 0622840
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 29.0 mm
- Approximate weight: 290.0 kg/100m
- Conductor cross-section: 50 mm²
FXQJ EMC1 kV 4X70/35
Nexans ref. 15143998-201-05 - Country ref. 0622847
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 34.0 mm
- Approximate weight: 322.0 kg/100m
- Conductor cross-section: 70 mm²
FXQJ EMC1 kV 4X95/50
Nexans ref. 15144098-201-05 - Country ref. 0622848
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 38.0 mm
- Approximate weight: 437.0 kg/100m
- Conductor cross-section: 95 mm²
FXQJ EMC 1 kV 4X120/70
Nexans ref. 15144198-201-05 - Country ref. 0622849
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 42.0 mm
- Approximate weight: 560.0 kg/100m
- Conductor cross-section: 120 mm²
FXQJ EMC 1 kV 4X150/70
Nexans ref. 15144298-201-05 - Country ref. 0622850
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 47.5 mm
- Approximate weight: 680.0 kg/100m
- Conductor cross-section: 150 mm²
FXQJ EMC 1 kV 4x185/95
Nexans ref. 15144398-201-05 - Country ref. 0622851
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 51.5 mm
- Approximate weight: 830.0 kg/100m
- Conductor cross-section: 185 mm²
FXQJ EMC 1 kV 4x240/120
Nexans ref. 15144498-201-05 - Country ref. 0622852
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 58.0 mm
- Approximate weight: 1080.0 kg/100m
- Conductor cross-section: 240 mm²
FXQJ EMC 1 kV 4x300/150
Nexans ref. 15144598-201-05 - Country ref. xxxx
- Packaging: Drum (500m)
- Number of cores: 4
- Nominal outer diameter: 65.0 mm
- Approximate weight: 1350.0 kg/100m
- Conductor cross-section: 300 mm²
Description
Description
Standards
-
ProductHD 604.5D
Description

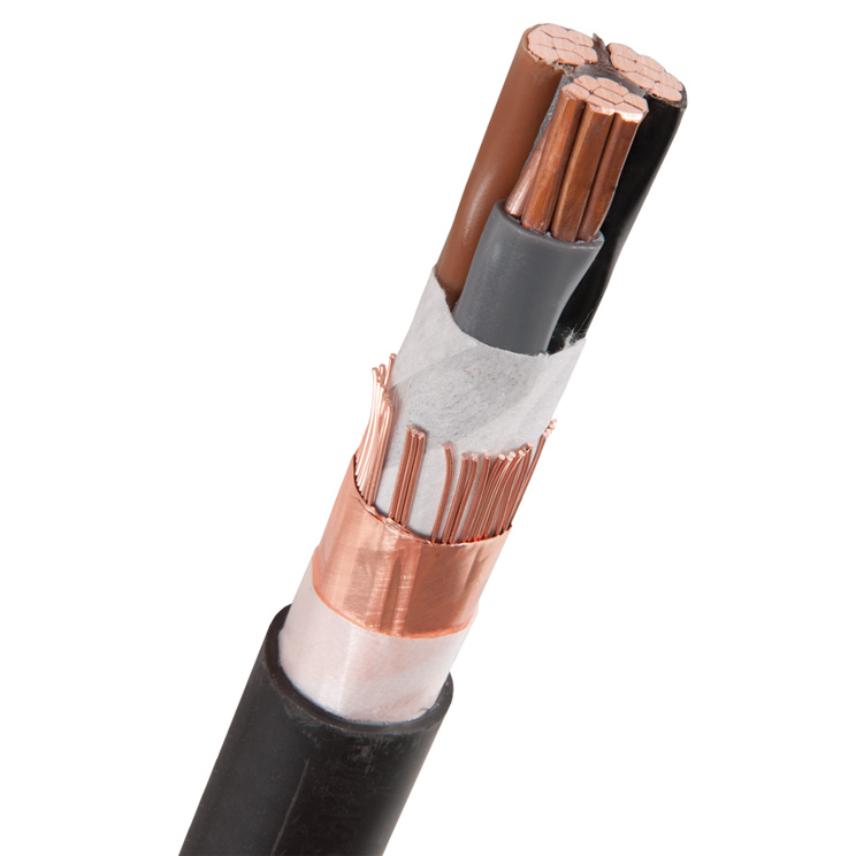

FXQJ/IFSI/MCMK HF EMC is a halogen free, XLPE-insulated, HFFR-sheathed cable with circular, stranded copper conductors for cross-sections up to 35 mm2. Larger cross-sections have sector shaped, stranded copper conductors. FXQJ/MCMK HF EMC is designed according to HD 604. The cable has a screen of annealed copper wires with opposite overlapping helix of copper tape. The copper screen has an optical coverage of 100 % and fullfil the EMC directive when it is correct installed. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by colours according to HD 308. The outer sheath is UV-protected and is marked type/manufacturer/flame propagation//year+month/metre marking. FXQJ/IFSI MCMK HF EMC meets the requirements for flame class Dcas2d2a2 according to CPR and emits no corrosive gases during fire. The cable is certified by Intertek SEMKO.
Lifemark™ recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Standards
FXQJ/IFSI/MCMK HF EMC is manufactured and tested according to HD 604 S1-5D in applicable parts. The cable can be loaded according to SS 424 14 24.
Certification
Approved by Intertek SEMKO.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
FXQJ/IFSI/MCMK HF EMC will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
