AXQJ Easy 1 kV 4X120/41
AXQJ Easy 1 kV 4X120/41
The cable may be used for fixed installation indoors and outdoors in air, ground and water. The cable is easier to work with and easier to strip than the equivalent standard cable.
Read more- Nexans ref. : 15164198-201-05
- Country ref. : 0623201
Description
Description
Standards
-
ProductHD 603.5AB

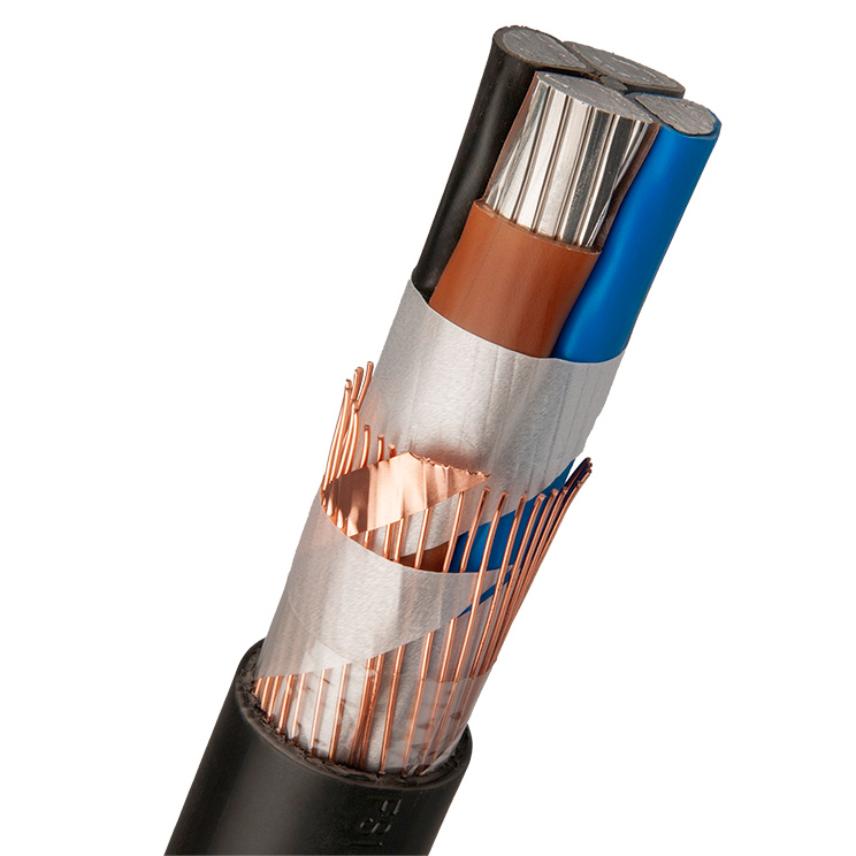

AXQJ/IFSI/AMCMK HF Easy™ is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped, stranded aluminium conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. AXQJ/IFSI/AMCMK HF Easy™ is designed according to HD 603 5AB. The conductors have resistance and number of wires according to IEC 60228 class 2. The cable is easy to bend and handle. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ Easy™ meets the requirements for fire classification accordingto CPR Dcas2d2a2. The cable is certified by Intertek SEMKO.
Standards
AXQJ/IFSI/AMCMK HF Easy™ is manufactured and tested according to HD 603 3-L.The cable can be loaded in accordance with national regulations on electrical installations.
Certification
Approved by Intertek SEMKO.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
EcoCalculator
Choose the best cable solution to achieve Energy Efficiency, reduced Carbon Footprint and improved Safety of people in case of fire, whilst ensuring a good return on Investment.
Installation film AXQJ Easy™ 1 kV
Make a technical dimensioning in EASYCALC
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
AXQJ/IFSI/AMCMK HF Easy™ will be delivered in lengths of 500 m The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Declaration of Performance
- Declaration of Performance n� : 1000706-SEGR
- Certification Date : 2/18/22
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
