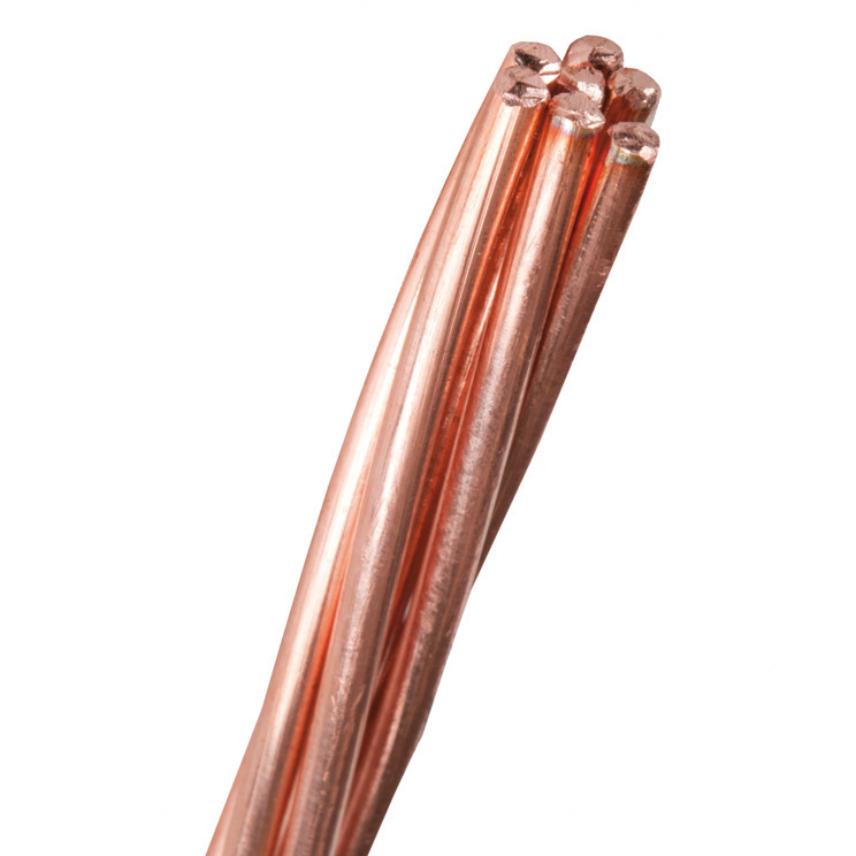

Bare copper conductor
Bare copper conductor
Cu-conductor for use in the network as earthconductor. Suitable for application in ground.
Read more16 mm² Bare Cu-conductor
Nexans ref. 26004698 - Country ref. 0107006
- Packaging: Drum (500m)
- Approximate weight: 139 kg/km
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 5.0 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
25 mm² Bare Cu-conductor
Nexans ref. 26004798 - Country ref. 0107008
- Packaging: Drum (500m)
- Approximate weight: 212 kg/km
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 6.3 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
35 mm² Bare Cu-conductor
Nexans ref. 26004898 - Country ref. 0107009
- Packaging: Drum (500m)
- Approximate weight: 301 kg/km
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 7.4 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
50 mm² Bare Cu-conductor
Nexans ref. 26007998 - Country ref. 0107010
- Packaging: Drum (500m)
- Approximate weight: 401 kg/km
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 8.6 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
70 mm² Bare Cu-conductor
Nexans ref. 26101398 - Country ref. 0107011
- Packaging: Drum (500m)
- Approximate weight: 590 kg/km
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 9.8 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
95 mm² Bare Cu-conductor
Nexans ref. 26101498 - Country ref. 0105108
- Packaging: Drum (500m)
- Approximate weight: 824 kg/km
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 11.5 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
120 mm² Bare Cu-conductor
Nexans ref. 26101598 - Country ref. 0105109
- Packaging: Drum (500m)
- Approximate weight: 1032 kg/km
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 12.9 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
Description
Description
Standards
-
ProductIEC 60228
Description
Bare copper wire with resistance according to IEC 60228. In order to facilitate siting, the copper wire is annealed.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Bare copper
Conductor shape
Circular compacted
Number of conductors
1
Usage characteristics
Usage characteristics
Short-circuit max. conductor temperature
370 °C
