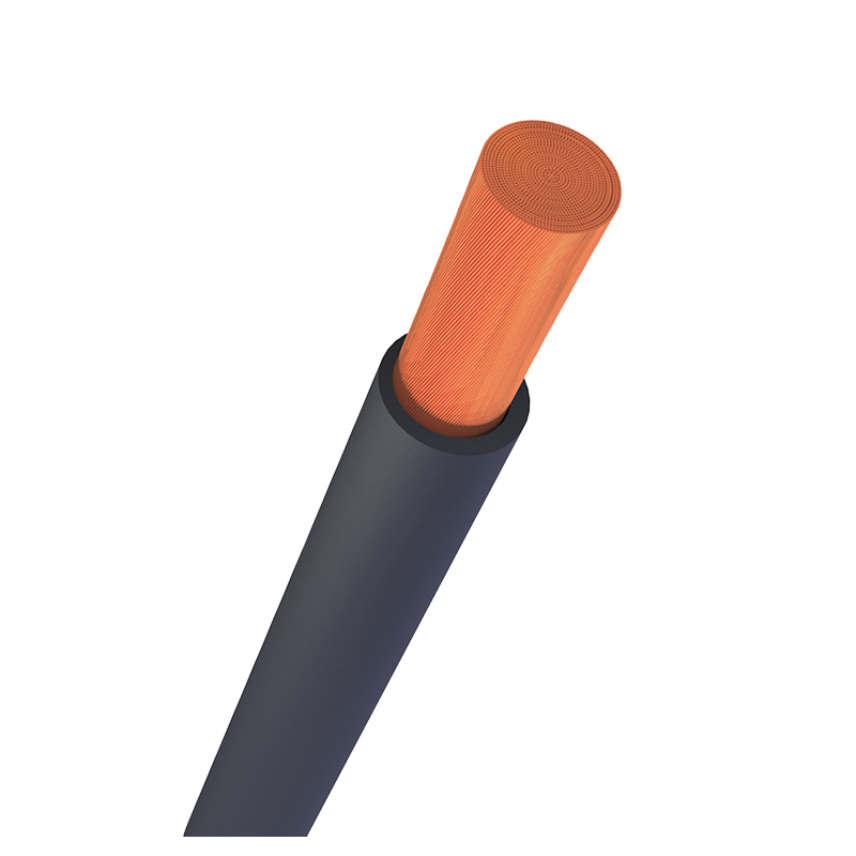

H01N2-D welding cables with reinforced sheath
H01N2-D 1x 35 mm2
Nexans ref. 10056811 - Country ref. 0414406
- Conductor cross-section: 35 mm²
- Maximum outer diameter: 14.2 mm
- Minimum outer diameter: 11.4 mm
- Approximate weight: 382 kg/km
H01N2-D 1x 50 mm2
Nexans ref. 20000998 - Country ref. 0414407
- Conductor cross-section: 50 mm²
- Maximum outer diameter: 16.5 mm
- Minimum outer diameter: 13.2 mm
- Approximate weight: 524 kg/km
H01N2-D 1x 70 mm2
Nexans ref. 20006198 - Country ref. 0414408
- Conductor cross-section: 70 mm²
- Maximum outer diameter: 19.2 mm
- Minimum outer diameter: 15.3 mm
- Approximate weight: 729 kg/km
H01N2-D 1x 95 mm2
Nexans ref. 20016498 - Country ref. 0414409
- Conductor cross-section: 95 mm²
- Maximum outer diameter: 21.4 mm
- Minimum outer diameter: 17.1 mm
- Approximate weight: 962 kg/km
H01N2-D 1x120 cut to length
Nexans ref. 20013498 - Country ref. 0414410
- Packaging: Cut to length (m)
- Conductor cross-section: 120 mm²
- Maximum outer diameter: 24.0 mm
- Minimum outer diameter: 19.2 mm
- Approximate weight: 1156 kg/km
H01N2-D 1x16 cut to length
Nexans ref. 20030198 - Country ref. 0414404
- Packaging: Cut to length (m)
- Conductor cross-section: 16 mm²
- Maximum outer diameter: 11.0 mm
- Minimum outer diameter: 8.8 mm
- Approximate weight: 207 kg/km
H01N2-D 1x25 cut to length
Nexans ref. 20011098 - Country ref. 0414405
- Packaging: Cut to length (m)
- Conductor cross-section: 25 mm²
- Maximum outer diameter: 12.7 mm
- Minimum outer diameter: 10.1 mm
- Approximate weight: 283 kg/km
H01N2-D 1x35 (50 mtr.)
Nexans ref.
- Conductor cross-section: 35 mm²
- Maximum outer diameter: - mm
- Minimum outer diameter: - mm
- Approximate weight: - kg/km
Description
Description
Standards
-
ProductEN 50525-2-81; HD 22.6; IEC 60245; NF C32-510
Application
Industry, and especially the steel construction , consumes steel in various forms: metal sheets, tubes and so on. Consequently the trade of welding is dominating in this activity. Nexans is present on this market, and proposes to its customers a range of welding cables which is characterized by a high flexibility.
Installation
Electrical supply of moving welding machines. This cable connects the welding equipment to the electrode hoder. It is also recommended for all flexible links working under a low voltage U0/U 100/100V maximum . The flexible conductors and the reinforced sheath give to the cables H01N2-D a high flexibility.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Marking (EN CENELEC marking)
USE <'HAR> H01N2-D 1 x s 213
s : cross-section in mm²
