LANmark EU style 45 x 45 surface mount box white

This surface mount box has a number of important features.

It not only fits with all LANmark 45x45 mounting hardware, it is also compatible with Mosaic-45 modules and inserts.

Application

• The box is designed to accomodate Nexans flat or angled 45x45 modular outlets for Snap-In connectors, as well as the LANmark-5 PCB outlet range.

Guarantees

• All plastic material is UL 94V0

Installation

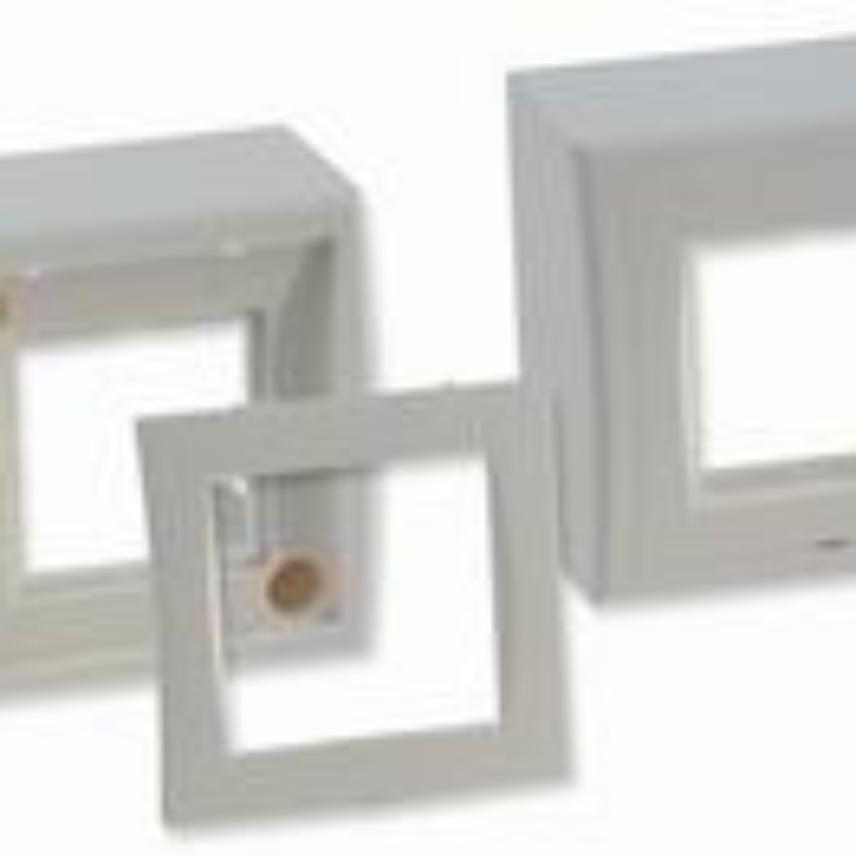

• The surface mount box consists of 2 parts:

  1. Body with coverplate and integrated flush mounting ring.

  2. Central covering plate (outer dim. +/-66x66mm, inner dim. 45x45mm)

• The 45x45 outlet modules can easily be clipsed into the body of the box.
• The central covering frame closes and finishes the surface mount box by a simple click-in mechanism.
• The box has reinforced fixing points in 2 diagonal corners.
• Easy cable entrance thanks to central break-outs on every side of the box, accepting 1 or 2 cables.
• The 45 x 45 surface mount box is completely open inside and has no rear side. This allows an easier arrangement of extra cable length during installation.
