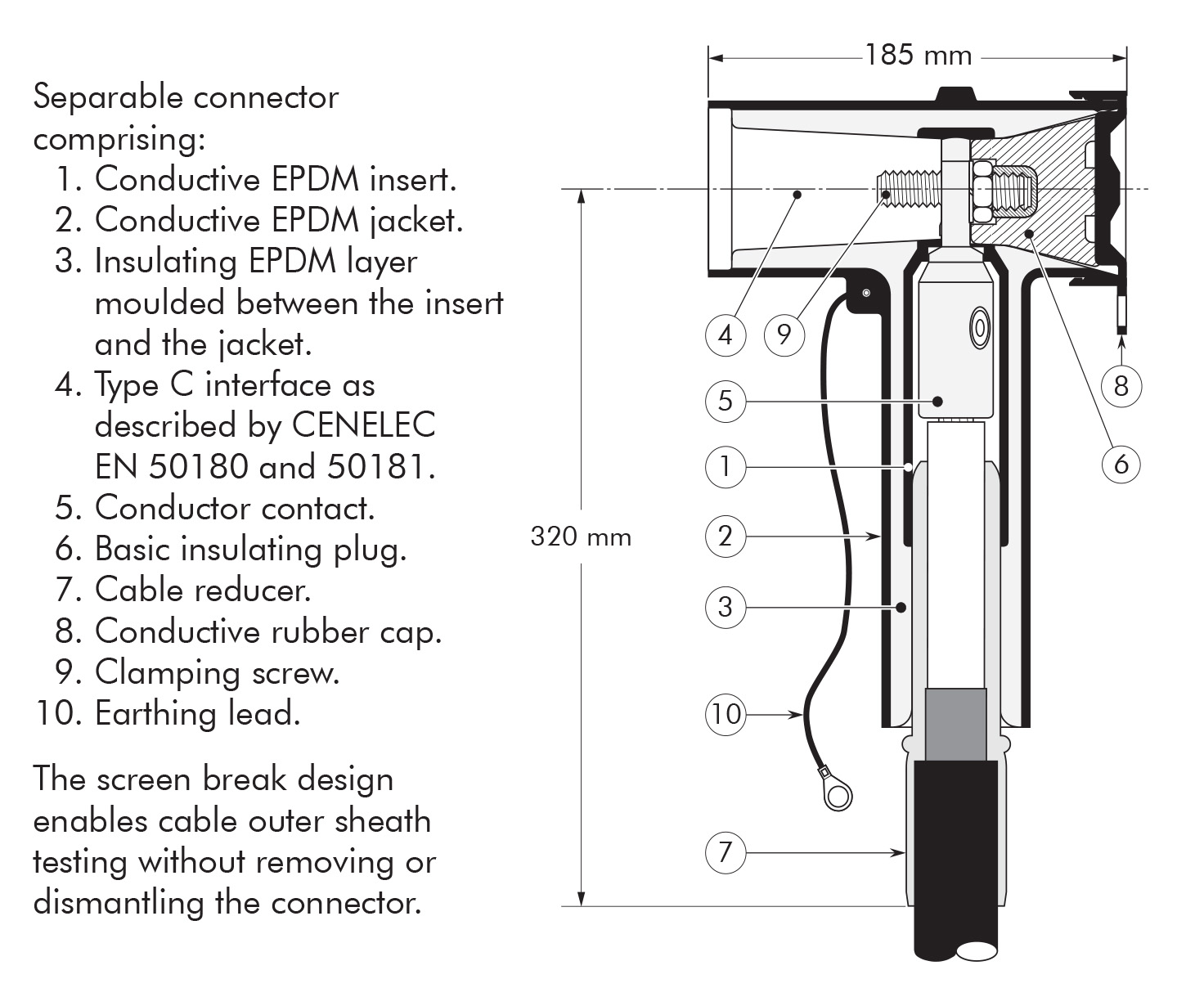

Separable connector 480TB - Interface C

Application

Separable tee shape connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.

Technical characteristics

• A thick conductive EPM jacket provides a total safe to touch screen.
• Each separable connector is tested for AC withstand and partial discharge prior to leaving factory.

Benefits

• Safe & reliable: with their slip-on technology, EUROMOLD®’s separable connectors are safe to install. Each separable connector is made with high quality components in Europe and individually tested before leaving the plant, ensuring a reliable connection and high-quality product.​
• Easy to install: make your job easier with slip-on separable connectors. They can be removed easily, when de-energized, without specific tools, and safely, thanks to high quality EPDM rubber inner and outer jackets, ensuring a long-lasting protection. The compact design is adapted to limited installation spaces.​
• Compact design: the compact design of separable connectors uses less raw material and limits sub packaging. It also reduces production and storage costs.​
• All-in-one solution: EUROMOLD’s separable connectors fit every project with their different shapes available for a wide range of cross sections for all interfaces from A to F.​
